What type of pallet rack do I need?

Selective teardrop rack is the default for mixed SKUs. Pushback holds 2–6 deep LIFO by SKU; pallet flow serves FIFO and dated stock; drive-in suits bulk inventory with few SKUs; cantilever carries long loads; carton flow handles case picking.

What size pallet rack do I need?

A 42-inch-deep upright commonly supports a standard 48-inch-deep pallet. Common beam lengths are 96 inches for two 40-inch pallets, 108 inches, and 144 inches for three. Height comes from building clear height and forklift lift height. Measure your actual pallets.

How many pallet positions fit in my warehouse?

Clear height, aisle width and the forklift determine the position count. Our free CAD layout gives you the exact count for the proposed arrangement before you buy.

What aisle width do I need?

The lift truck sets the aisle: counterbalance trucks need approximately 12–13 feet, reach trucks 8–10 feet, and very-narrow-aisle trucks 5–6 feet. Confirm the requirement for your truck and pallet before setting rows.

Pallet rack beams and uprights in a warehouse

ROCHESTER PALLET RACK

Pallet Rack Systems in Rochester, NY

Name: Rochester Pallet Rack
Address: 3300 Monroe Ave, Unit D, Rochester, NY, 14618, US
Telephone: (585) 542-7705

Choose a storage system from the load and the way it moves: direct pallet access, deep-lane inventory, dated stock, long material or case picking. We quote new rack material with a measured layout and a defined installation scope.

Henrietta, Victor and Webster contain a mix of newer distribution space and older plant buildings, where changing clear heights and cold-storage requirements affect system selection.

(585) 542-7705

Warehouse Racking: Choose the Storage Pattern

Match direct access, lane depth and stock rotation to your inventory. Each system is supplied as new material.

Pallet Rack

Direct access to each pallet for mixed SKUs and changing inventory.

View system

Pushback Rack

Two-to-six-deep LIFO lanes for multiple pallets of the same SKU.

View system

Pallet Flow Rack

Gravity-fed FIFO lanes for dated grocery, dairy and produce inventory.

View system

Drive-In Rack

Deep bulk lanes for large quantities of a small number of SKUs.

View system

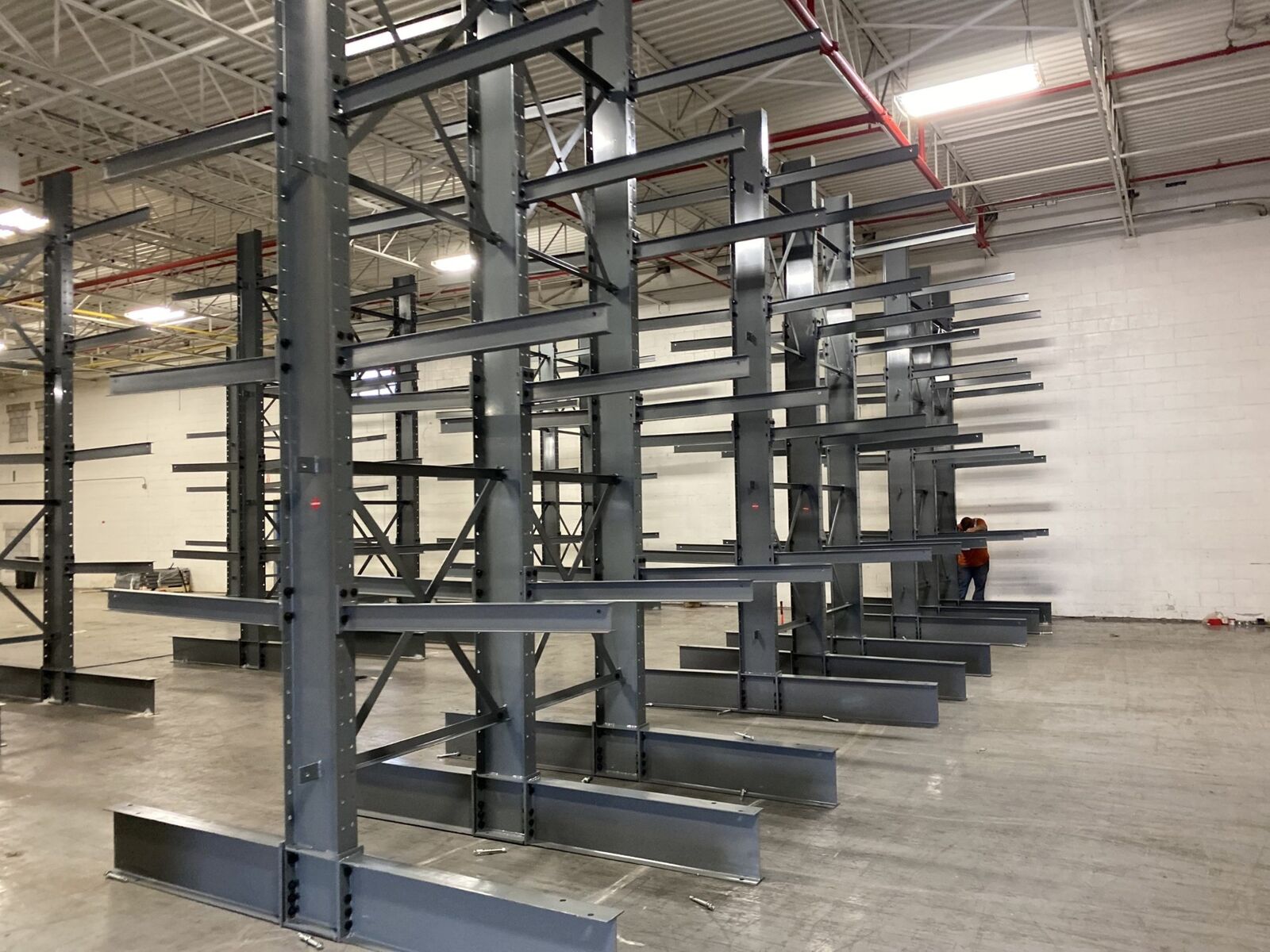

Cantilever Rack

Open-front arms for lumber, pipe, steel and other long loads.

View system

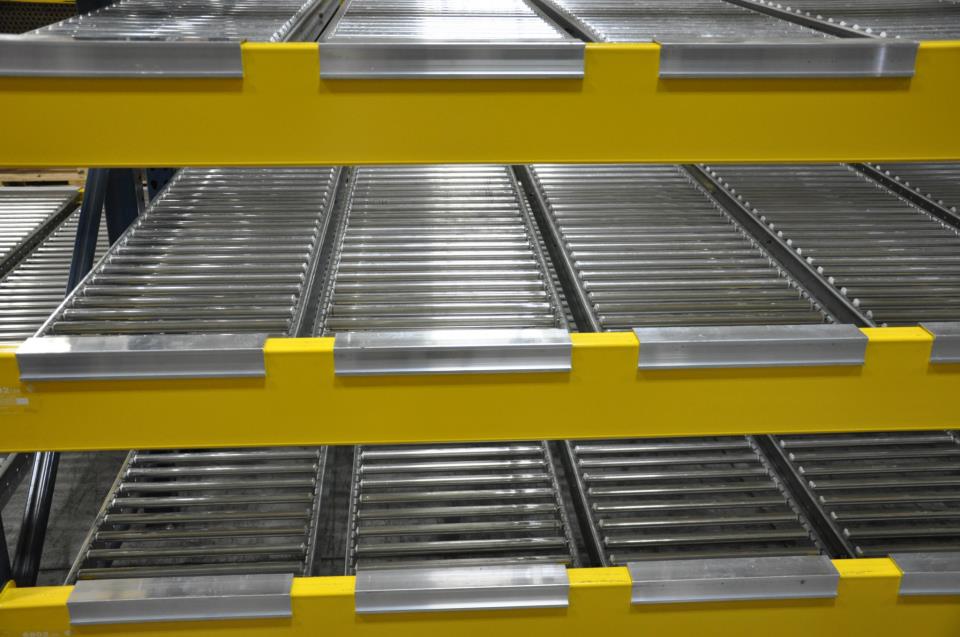

Carton Flow Rack

Gravity-fed pick faces for cartons, cases and small-parts replenishment.

View system

Warehouse Racking Selected by Inventory Turns

Mixed SKUs favor selective access. Several pallets of one item can use pushback lanes if LIFO handling suits the inventory. Grocery and dated stock point toward pallet flow; bulk quantities with few SKUs may fit drive-in. Long lumber and pipe need cantilever arms. E-commerce and component picking can use carton flow with reserve pallets nearby.

Storage systems for Webster →Pallet racks for Farmington →

Match Beam Capacity, Height and Aisles

The beam pair rating applies to one level, and frame capacity depends on height and beam spacing. The forklift sets loaded reach and working aisle width. We compare those requirements in a free CAD layout before selecting the new material. Installation is provided by experienced installation crews we schedule and manage; supply and installation timing are confirmed with the quotation.

Warehouse relocation service →

Choosing Warehouse Racking

Plan Your Pallet Rack Layout

Send pallet dimensions, load weights and building measurements for a free CAD layout and itemized quote.
