Start aisle selection with the forklift model, pallet dimensions and turning requirement. A nominal truck category cannot establish a final aisle width for every load. Include product overhang when checking the path around row ends, especially where a driver enters from a cross aisle.

Loaded truck reach determines which beam elevations can actually serve inventory. Compare the required pallet weight with the truck's capacity at that height and load center. A lower storage level may be more useful than an unreachable upper position. Mark receiving queues separately from maneuvering space, and avoid counting temporary staging as permanent access. Doors and columns belong on the first measured sketch, not just the final drawing.

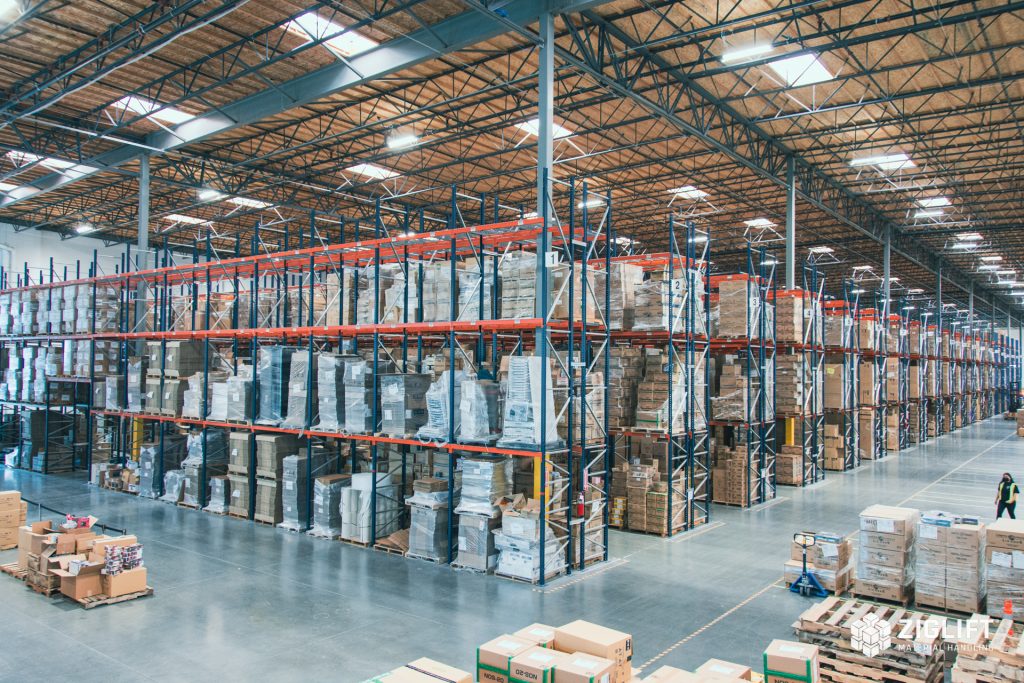

Separate the inventory list into direct access pallets, repeated cases and reserve quantities. Selective rack suits a broad assortment because each stored pallet remains individually reachable. Carton flow can serve frequently picked cases while nearby reserve bays hold replenishment stock. The two areas need different lane dimensions and handling access.

Assign slot quantities from normal demand and replenishment intervals rather than giving every SKU an equal footprint. Products with occasional orders may share a slower picking zone without sharing a pallet position. Track which stock requires arrival order rotation before comparing deeper storage. A dense arrangement loses usable capacity when each lane contains too few matching pallets to occupy its intended depth.

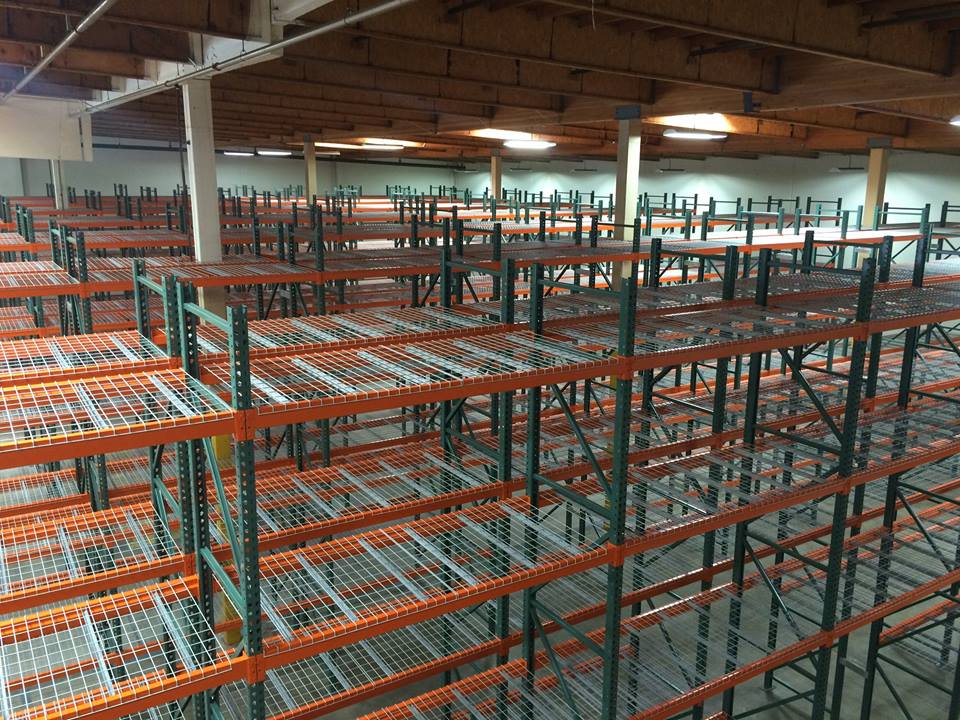

Actual load dimensions establish beam length and frame depth together. Check the pallet support arrangement, the clearance between neighboring loads and the distance to upright faces. Frame spacing must suit the selected beam span rather than an approximate aisle sketch.

For each level, beam pair capacity covers the combined supported pallet weight under the specified loading pattern. Upright capacity requires its own check using frame height and vertical beam spacing. Raising the first beam or removing a level can change that assessment even when the pallets stay unchanged. List maximum weights by load family, then show which levels receive them. Do not treat a beam label as approval for every possible bay arrangement.

A measured CAD layout can divide the room into practical storage zones while retaining connected travel routes. Show the usable clearance in each zone instead of assuming identical conditions throughout the building. Count positions only after beams, truck access and load heights have been reconciled.

For phased changeovers, experienced installation crews we schedule and manage assemble the released areas while inventory follows the agreed transfer sequence. Identify material receiving space before delivery and decide which rows must be available first. Warehouse relocation planning should connect that sequence to stock movement, not merely to the component shipment. Supply lead time is confirmed on the quote after the new material specification and quantities are established.
